Fans look simple from the outside: a spinning blade, a few wires, maybe a faint hum that reminds you your electronics are still alive. Under the hood, though, fan control is a surprisingly rich little world of pulse trains, voltage levels, tachometer feedback, low-pass filters, MOSFETs, op-amps, and the occasional “why is this thing running at full speed at 2 a.m.?” moment.
That is where converting PWM to DC signaling for more precise fan control becomes useful. Pulse-width modulation, or PWM, is a digital control method that switches a signal on and off very quickly. DC signaling, by contrast, uses a steady analog voltage level. In many cooling systems, especially embedded electronics, industrial controllers, server enclosures, 3D printers, audio gear, lab equipment, and HVAC-adjacent projects, you may need to turn a PWM output from a microcontroller into a clean DC control voltage for a fan driver, analog speed controller, or 0–10V input.
The idea sounds simple: smooth the pulses into a voltage. In practice, the details matter. Filter too lightly and the fan controller sees ripple. Filter too aggressively and your fan responds like it had a large lunch and needs a nap. This guide explains how PWM-to-DC fan control works, why it improves precision in the right applications, how to design the conversion circuit, and what mistakes to avoid before your cooling system starts auditioning for a leaf blower commercial.
What PWM Fan Control Actually Does
PWM controls fan speed by varying the percentage of time a signal stays high during each cycle. This percentage is called the duty cycle. A 25% duty cycle means the signal is high for one quarter of the period and low for the remaining three quarters. A 75% duty cycle means it stays high most of the time. For a PWM fan or motor controller, that duty cycle becomes a command: slower, faster, or somewhere in the comfortable middle.
Most 4-wire computer-style PWM fans use a constant supply voltage, commonly 12V, while a separate control wire carries the PWM command. This is different from 3-wire DC fan control, where speed is adjusted by changing the supply voltage itself. With 4-wire fans, the fan’s internal electronics remain properly powered while the PWM line tells the onboard driver what speed to target. That usually gives better startup behavior, lower electrical stress, and more predictable speed regulation.
PWM Versus DC Control
In a PWM system, the controller sends a square wave. In a DC system, the controller sends a steady voltage. For example, a controller might output 0V for off, 5V for full speed, and 2.5V for roughly half speed. Some industrial fan drives, EC motors, and analog input modules use 0–5V or 0–10V control inputs rather than a 25 kHz PWM input. If your microcontroller only has PWM outputs, you need a way to convert that digital pulse train into a usable analog voltage.
This is the heart of a PWM to DC fan control circuit: turn duty cycle into average voltage. If the PWM signal swings from 0V to 5V, then a 50% duty cycle averages to about 2.5V. A 20% duty cycle averages to about 1V. A 90% duty cycle averages to about 4.5V. The circuit doing this conversion is usually a low-pass filter, often followed by a buffer or amplifier.
Why Convert PWM To DC Signaling?
Converting PWM to DC is not always necessary. If you are using a standard 4-wire PWM fan with a controller that can generate the correct PWM frequency and voltage level, direct PWM control is usually the cleanest path. However, PWM-to-DC conversion becomes valuable when the device you are controlling expects analog voltage, when you want smoother command behavior, or when you need to isolate noisy digital switching from sensitive analog or measurement circuits.
1. Better Compatibility With Analog Fan Inputs
Many motor controllers, fan trays, EC blowers, and industrial speed modules accept analog control signals such as 0–5V, 0–10V, or sometimes 1–10V. A microcontroller such as an Arduino, Raspberry Pi Pico, ESP32, STM32, or PIC may not include a true digital-to-analog converter on every pin, but it almost certainly offers PWM. A filtered PWM output lets that microcontroller behave like a simple DAC without adding an expensive external chip.
2. Smoother Speed Commands
A properly filtered DC control voltage can reduce abrupt changes in command level. This matters in systems where fan speed should ramp gently with temperature instead of jumping from “library whisper” to “server room thunderstorm.” Smooth fan transitions can reduce audible annoyance, mechanical stress, and unnecessary current surges.
3. Cleaner Integration With Feedback Loops
Closed-loop fan control uses feedback, usually from a tachometer output or airflow sensor, to compare actual fan speed with the desired speed. A filtered analog command can simplify certain control loops, especially when the downstream driver or motor module expects a voltage input. The microcontroller can still calculate the control output digitally, then produce a proportional DC level through PWM filtering.
How PWM Becomes DC: The Average Voltage Principle
The basic math is friendly enough to invite to dinner:
Output voltage ≈ PWM high voltage × duty cycle
For a 5V PWM signal:
- 10% duty cycle ≈ 0.5V DC
- 25% duty cycle ≈ 1.25V DC
- 50% duty cycle ≈ 2.5V DC
- 75% duty cycle ≈ 3.75V DC
- 100% duty cycle ≈ 5V DC
Of course, real circuits are not perfect. The final voltage depends on the PWM amplitude, output resistance of the microcontroller pin or driver, filter design, load impedance, supply accuracy, leakage current, capacitor tolerance, and noise. Still, the average-voltage principle is the foundation of nearly every simple PWM-to-analog converter.

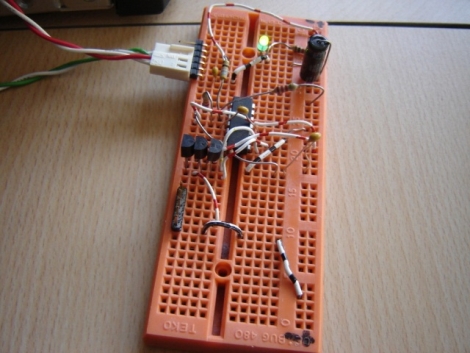

The Basic PWM To DC Fan Control Circuit
The simplest circuit is a passive RC low-pass filter. It uses one resistor and one capacitor:
The resistor limits charging and discharging current. The capacitor stores charge and smooths the PWM pulses. Together, they reduce the high-frequency switching component and leave behind the slower-changing average voltage.
Choosing the RC Filter Values
The cutoff frequency of a basic RC filter is:
For PWM-to-DC fan control, the cutoff frequency should usually be much lower than the PWM carrier frequency. If the PWM frequency is 25 kHz, a cutoff somewhere around 10 Hz to 100 Hz can be useful depending on how much ripple you can tolerate and how quickly you want the fan command to respond.
Here is a practical example:
This filter will heavily reduce a 25 kHz PWM carrier while still allowing the DC level to move smoothly when the duty cycle changes. For many fan-speed applications, that response is perfectly acceptable because thermal systems are slow. A heatsink does not usually go from cool to molten lava in 20 milliseconds, unless something has gone very creatively wrong.
The Ripple Versus Response-Time Trade-Off
Every PWM-to-DC filter has a trade-off. A larger capacitor or resistor gives lower ripple but slower response. A smaller capacitor or resistor gives faster response but more ripple. In fan control, low ripple is helpful because some analog fan inputs may interpret ripple as command noise. However, a fan control signal does not need audio-quality bandwidth. You are controlling airflow, not mixing a jazz album.
A good rule is to start with a PWM frequency high enough to make filtering easy, then select an RC time constant that produces stable voltage without making temperature response sluggish. For thermal fan control, update rates of a few times per second are often more than enough.
When a Simple RC Filter Is Not Enough
A passive RC filter is elegant, cheap, and wonderfully boring. But it has limits. The output impedance is set largely by the resistor, which means the circuit works best when connected to a high-impedance input. If the fan controller input draws meaningful current, it can load the filter and pull the voltage down. That ruins accuracy and makes your carefully calculated voltage curve look like it fell down the stairs.
Add an Op-Amp Buffer
A buffer, usually an op-amp voltage follower, prevents the load from disturbing the RC filter. The filter creates the voltage, and the op-amp provides a low-impedance output to drive the fan controller input. For 0–5V systems, choose a rail-to-rail op-amp that can operate from the same supply voltage and handle output levels close to ground and the positive rail.
This arrangement is much more robust than connecting the RC node directly to an unknown load. It is especially useful for industrial fan inputs, long wires, noisy environments, or multiple fan controllers sharing one command signal.
Use an Active Low-Pass Filter
If you need lower ripple without painfully slow settling time, use a second-order active low-pass filter. A Sallen-Key or multiple-feedback filter can provide steeper attenuation than a single RC stage. This means better smoothing of the PWM carrier while preserving a more responsive control voltage.
For most fan applications, a first-order RC filter plus buffer is enough. For precision laboratory instruments, high-end thermal chambers, acoustic testing rigs, or tightly regulated electronics enclosures, an active filter may be worth the extra design effort.
Scaling PWM To 0–10V Fan Control
Many industrial fans and EC motor controllers use a 0–10V speed input. A typical microcontroller PWM output is 3.3V or 5V, so filtering alone cannot reach 10V. You need amplification.
One common approach is:
- Generate PWM from the microcontroller.
- Filter it into a 0–3.3V or 0–5V DC signal.
- Use an op-amp gain stage to scale the voltage to 0–10V.
- Power the op-amp from a supply high enough to reach 10V output.
For example, if the filtered PWM signal ranges from 0–5V, a non-inverting amplifier with a gain of 2 can produce 0–10V. The gain equation is:
Using equal resistor values for Rf and Rg gives a gain of 2. If your PWM signal is 0–3.3V, the required gain is about 3.03. In that case, resistor tolerance becomes more important if you want accurate voltage scaling.
Direct PWM Control Versus Converted DC Control
Direct PWM control is usually best for true 4-wire PWM fans. These fans are built to interpret a control waveform directly. Many PC-style PWM fans expect a high-frequency logic-level signal and may behave unpredictably if the PWM frequency is far outside the recommended range. A missing PWM signal may also cause some fans to run at full speed as a fail-safe behavior.
Converted DC control is best when the controlled device expects analog voltage. Do not feed a smoothed DC voltage into a fan’s PWM control pin unless the fan documentation specifically says it accepts analog voltage there. A PWM input and an analog voltage input are not automatically interchangeable. They may look like cousins on a wiring diagram, but electrically they can be very different relatives.
Use PWM When:
- The fan has a 4-wire PWM input.
- The datasheet specifies PWM control frequency and logic levels.
- You want efficient speed control while keeping the fan supply voltage constant.
- You can generate the correct PWM signal directly.
Use PWM-To-DC Conversion When:
- The fan controller requires 0–5V, 0–10V, or another analog control voltage.
- You need a smooth command signal for an analog feedback system.
- Your microcontroller lacks a DAC but has PWM outputs.
- You want to reduce high-frequency switching noise entering an analog input.
Design Example: Microcontroller PWM To 0–5V Fan Input
Suppose you have a microcontroller with a 5V PWM output and an analog fan controller that accepts 0–5V. The fan speed should increase as temperature rises. You can build a practical circuit like this:
Set the PWM frequency to something high enough for easy filtering, such as 20 kHz or higher if the microcontroller supports it. Use firmware to map temperature to duty cycle. For example:
- Below 35°C: 20% duty cycle
- 45°C: 40% duty cycle
- 55°C: 65% duty cycle
- 65°C and above: 100% duty cycle
The RC filter converts those duty cycles into approximate voltages of 1.0V, 2.0V, 3.25V, and 5.0V. The op-amp buffer sends a stable low-impedance signal to the fan controller. Add hysteresis or a slow ramp in firmware to prevent the fan from hunting up and down around temperature thresholds.
Design Example: PWM To 0–10V Industrial Fan Control
Now imagine you are controlling an EC fan module with a 0–10V input from a 3.3V microcontroller. A suitable architecture might look like this:
The op-amp must be powered from a voltage above 10V, often 12V or 15V, and must be able to swing close enough to ground and 10V for the required accuracy. Add output protection, such as a series resistor and clamping strategy, if the signal cable leaves the board. In industrial cabinets, fans share space with relays, motors, switching power supplies, and other electrical mischief-makers. Good grounding and protection are not optional decorations.
Precision Tips for Cleaner Fan Control
Use a Stable PWM Reference Voltage
The DC output depends on the PWM high level. If your microcontroller’s supply voltage wanders, the filtered output wanders too. For better precision, drive the PWM through a logic buffer powered by a stable reference or regulated supply. This improves gain accuracy and makes the duty-cycle-to-voltage relationship more predictable.
Increase PWM Resolution
PWM resolution determines how many duty-cycle steps are available. An 8-bit PWM output has 256 steps. A 10-bit output has 1024 steps. A 12-bit output has 4096 steps. Higher resolution gives finer fan-speed commands, especially when converting to a 0–10V signal. However, PWM frequency and resolution often trade against each other because both depend on timer configuration.
Separate Signal Ground From Power Noise
Fans are motors, and motors are professional noise generators. Keep the analog filter ground clean. Route high-current fan supply returns away from the PWM filter and analog input reference. Use decoupling capacitors near the fan supply and controller ICs. If the fan cable is long, consider shielding, twisted pairs, or differential/isolated control methods for demanding environments.
Read the Tachometer Signal Correctly
Many fans provide a tachometer output, often as an open-collector or open-drain signal. It usually needs a pull-up resistor. The tach signal lets your controller verify that the fan is actually spinning at the commanded speed. This is essential for fault detection because a beautiful 5V control signal does not help if the fan is jammed, unplugged, or having an existential crisis.
Common Mistakes To Avoid
Mistake 1: Filtering PWM Then Feeding a PWM Pin
A 4-wire PWM fan expects a digital PWM signal on its control pin, not a slowly varying analog voltage, unless the datasheet says otherwise. If you filter the PWM into DC and connect it to a digital PWM input, the fan may run full speed, stall, ignore the command, or behave inconsistently.
Mistake 2: Using Too Low a PWM Frequency
Low PWM frequencies are harder to filter and may create audible noise. They also require larger capacitors or slower response to achieve the same ripple level. For PWM-to-DC conversion, higher PWM frequency generally makes the analog filter easier to design.
Mistake 3: Ignoring Startup Requirements
Some fans need a minimum voltage or minimum duty cycle to start reliably. Once spinning, they may continue running at a lower command level. A good controller may briefly command full speed at startup, then settle to the desired speed. This avoids the classic “silent because it is efficient” problem, which can quickly become “silent because it is not spinning.”
Mistake 4: Connecting Multiple Inputs Without Buffering
One RC filter output should not blindly drive several analog fan inputs unless the total load impedance is known and acceptable. Use a buffer or distribution amplifier if one control signal must command multiple fans or modules.
Firmware Strategy for Precise Fan Control
Good hardware needs good firmware. Instead of mapping temperature directly to duty cycle with abrupt steps, use a fan curve. A fan curve defines the output command across a temperature range. For quieter operation, use gradual slopes at moderate temperatures and steeper increases near thermal limits.
Add hysteresis to prevent constant speed changes near a threshold. For example, the fan might increase speed at 55°C but not decrease again until temperature falls below 52°C. Add rate limiting so the PWM duty cycle changes gradually. This makes fan behavior sound smoother and more intentional. Nobody wants a cooling system that panics every time the CPU opens a spreadsheet.
For closed-loop control, read the tachometer and compare actual RPM with target RPM. A simple proportional-integral controller can adjust the command voltage to compensate for fan variation, dust buildup, filter restriction, aging bearings, and supply voltage differences. This is where precise fan control really earns its name: the system controls measured airflow behavior rather than merely hoping a voltage command produces the right result.
Testing the PWM-To-DC Fan Control Circuit
Before connecting your fan controller, test the circuit in stages. First, measure the raw PWM signal with an oscilloscope or logic analyzer. Confirm frequency, voltage level, and duty-cycle range. Next, measure the filtered DC output with a multimeter. At 50% duty cycle from a 5V PWM source, you should see approximately 2.5V. Then use an oscilloscope to check ripple at the filter output.
After that, connect the buffer or amplifier and verify the final output range. If the circuit is designed for 0–10V, test 0%, 25%, 50%, 75%, and 100% duty cycle. Finally, connect the fan controller and observe actual RPM, startup behavior, noise, and thermal response under real load. Real fans have personalities. Some are obedient. Some need encouragement. Some act like they read the datasheet and chose rebellion.
Real-World Experiences With Converting PWM To DC Signaling For More Precise Fan Control
In real projects, the first surprise is usually that the math works beautifully on paper and then becomes slightly less beautiful once wires, loads, and noise enter the room. A filtered PWM signal can look clean on a multimeter because the meter averages everything. Then an oscilloscope reveals ripple riding on top of the DC level. That ripple may not matter for a tolerant fan controller, but it can cause unstable behavior in a sensitive analog input. This is why testing with both a meter and a scope is valuable.
One practical experience is that fan control feels better when the system is designed around behavior, not just voltage. For example, a 2.5V command into a 0–5V input might suggest “half speed,” but the fan may not produce half airflow. Fan curves are not perfectly linear because airflow, static pressure, blade design, motor commutation, and enclosure restriction all influence the result. In a tight electronics box with filters and cables blocking airflow, 50% command might produce less cooling than expected. The lesson: measure temperature and RPM, not just the control voltage.
Another common lesson is that startup deserves special treatment. Many fans are happiest when given a strong initial command for a second or two. After that, they can be ramped down to a quiet operating point. Without this startup boost, a low analog command may leave the fan twitching instead of spinning. That is technically motion, but not the kind that cools your power supply.
Long wires also teach humility. A PWM-to-DC circuit that behaves perfectly on a breadboard may pick up noise when installed in a cabinet near switching supplies or motor wiring. In those cases, placing the filter close to the receiving analog input can help. So can buffering the signal, using a solid ground reference, adding cable shielding, and avoiding shared high-current return paths. Good layout often fixes problems that no amount of firmware drama can solve.
There is also a useful design habit: keep the control signal slightly conservative. If a 0–10V fan input reaches full speed at 10V, it is wise to make sure the circuit can reach close to that level under load, but not overshoot dangerously. Add clamping or firmware limits where needed. For minimum speed, verify the fan’s actual behavior at low voltages. Some controllers treat 0V as stop, while others use a minimum-run mode. This difference matters in systems where continuous airflow is required for safety or reliability.
Finally, the best fan controllers are boring in operation. They start reliably, ramp smoothly, hold temperature without constant speed hunting, detect fan failures, and stay quiet when cooling demand is low. Converting PWM to DC signaling is not glamorous, but it is one of those practical electronics techniques that makes a system feel polished. When done correctly, nobody notices it. The fan simply spins at the right speed, the equipment stays cool, and the user does not wonder whether a tiny drone has moved into the enclosure.
Conclusion
Converting PWM to DC signaling for more precise fan control is a practical way to bridge digital microcontroller outputs and analog fan-control inputs. The core concept is simple: PWM duty cycle becomes average voltage through low-pass filtering. The design quality, however, depends on smart filter selection, proper buffering, correct voltage scaling, stable references, clean grounding, and real-world testing.
Use direct PWM when the fan is designed for PWM input. Use PWM-to-DC conversion when the fan driver or controller expects analog voltage. Add an op-amp buffer when load impedance is uncertain. Scale carefully for 0–10V systems. Measure ripple, verify startup, and use tachometer feedback when reliability matters. Do all that, and your fan control system can become quieter, smoother, more accurate, and much less likely to surprise you with full-speed chaos during a peaceful afternoon.
Note: This article is written for educational and engineering-planning purposes. Always verify voltage levels, current limits, PWM frequency, grounding, startup behavior, and control-input requirements against the exact fan and controller datasheets before building or publishing a final circuit.
